Dashboards

Five views in which the data collected by Q247 can be read. They differ in the level they aggregate data to, from the whole organization down to a single person.

The metrics are the same in each of them. What changes is the scope of aggregation and which elements make sense at a given level; Flow Metrics, for example, exist only at project level.

View levels

View	Description
Overview	The whole organization, with a list of projects. The first screen after signing in, for a general check of the situation.
Project	One project together with its participants. The day to day work of a project manager.
Teams	A list of all teams in the organization, for comparing them with each other.
Team	One team and its members. The work of a team manager.
Participant	One person across all of their projects. Development conversations, verification of a single result.

Project and team as two cross sections of the same data

A project is a set of data sources: code repositories, and also Jira project keys and Confluence spaces if they have been assigned to it. It groups work by what the work was done on.

A team is a set of people. It groups the same work by who did it.

Both are calculated from the same set of events, only summed differently. The same commit therefore counts towards the result of the project its repository belongs to, towards the result of the team its author belongs to, and towards the result of that author. This is why values from Project and from Team do not add up to any common total: they are two cross sections, not two separate parts.

Recurring elements

These elements work the same way in every view where they appear.

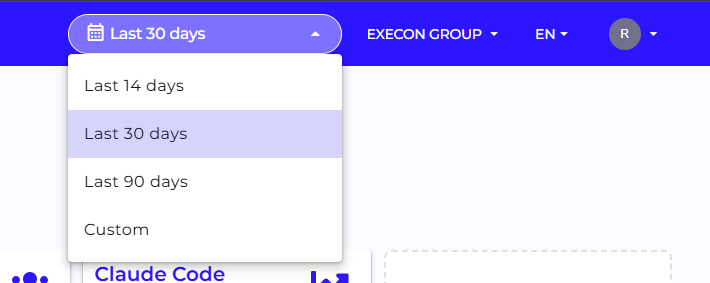

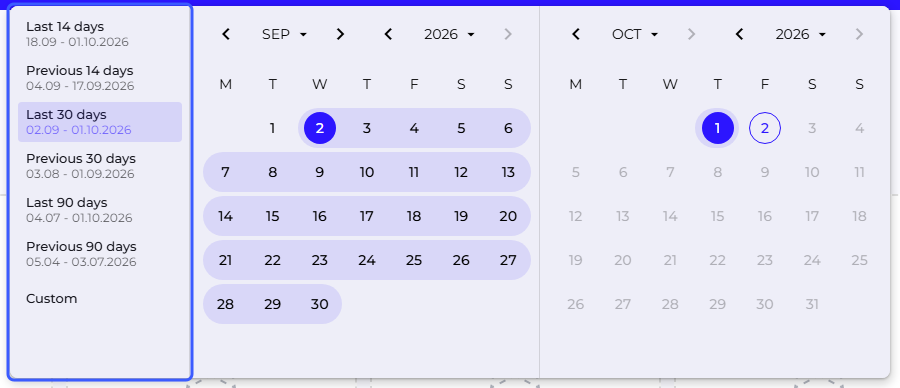

• The date range selector sets the period the values on the page are calculated for. The options are Last 14 days, Last 30 days, Last 90 days and Custom, which lets you pick your own dates.

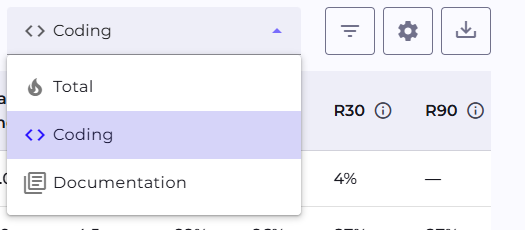

• Calories Type switches which activity the metrics are calculated from. It is one shared choice for the whole page, stored locally in the browser. How long that choice is remembered differs between views, which Calories Type describes. There are three options:

  • Total: commits, pushes, Jira tickets and Confluence pages together.
  • Coding: only commits and pushes to a repository.
  • Documentation: only Jira tickets and Confluence pages.



• The "Team metrics" card strip on the Project and Team pages summarizes that unit within the selected date range.

• A table appears in every view, but its subject changes: projects on the Overview, teams in Teams, participants in Project and Team, and all of a person's projects in Participant. Each of them lets you move from the aggregate level down a level.

• The gear icon in the tables opens the "Customize table content" window, where metric columns grouped into categories are turned on and off. The column choice is separate for each table.

• The star next to a row or in the header of a details page pins an item to the Favourites carousel on the Overview.

Two exceptions to the shared selectors

Cards in the Favourites carousel on the Overview show numbers for the last 14 days, regardless of the range selected for the rest of the page.

Cards in the "Team metrics" section do not react to Calories Type. Their values stay the same for every option of that selector, unlike the charts and tables on the same page.

Aggregate values are worth reading together with the table below them. The same team result can come from an even contribution by several people or from the work of one, and only the level below settles that.

Access to the views

Which projects and teams a person sees follows from their access to a specific project and from their team role, both described in Permissions. The Admin role on its own does not open business data.

Subpages

🏠Overview

The first page after signing in, an aggregate view of all projects and the list of favourites.

🗃️Project

Details of a single project, from team metrics to the list of participants.

👤Participant

Details of one person, opened from the participants table of a project or team.

👥Teams

The list of all teams in the organization, available from the main navigation.

🧑‍🤝‍🧑Team

Details of one team, aggregated data for all of its members.

See also

• Metrics: what the individual numbers mean and how they are calculated
• AI features: the AI Assistant and AI Adoption, both visible inside the dashboards
• Permissions: who sees which projects and teams
